背景概述
- 最近在搭建基于Spring Boot(2.0.2)种子项目框架时，遇到了树形菜单加载问题。特此把解决的问题方案记录下去，供其他小伙伴参考和日后回顾。
方案分析
- 方案选择
- 一次性加载完，返回前台需要的数据结构
- 点击加载，默认记载根层级的菜单。后续点击那一级菜单加载其下的子节点
- 方案实现
- 在这里只分析一次性加载实现。第二种实现起来更简单。在这里略过。有兴趣可以自己研究一下。
具体实现
- 表、数据等基础资料

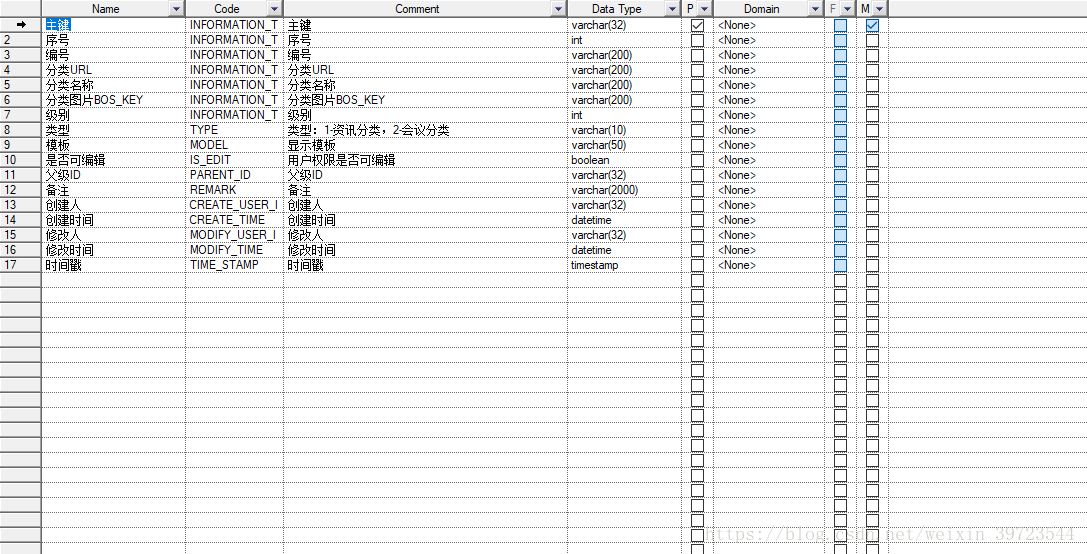

- 表结构

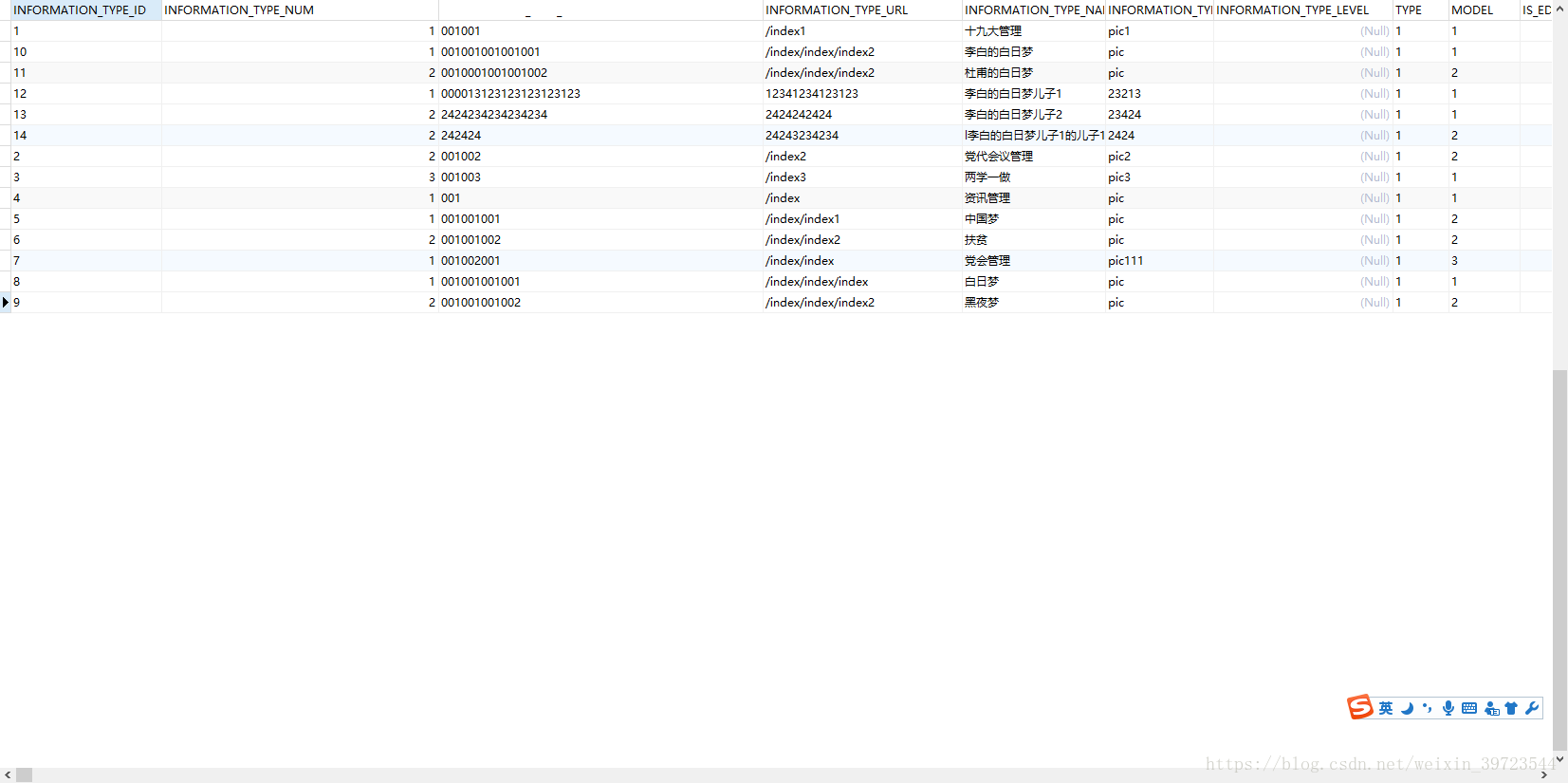

- 测试数据（忽略内容啊）
- Vo对象字段
private String informationTypeId; // 菜单id
private Integer informationTypeNum;
private String informationTypeCode;
private String informationTypeUrl;
private String informationTypeName;
private String informationTypePicBosKey;
private Integer informationTypeLevel;
private String type;
private String model;
private Boolean isEdit;
private String parentId; // 父菜单id
private String remark;
private String createUserId;
private Date createTime;
private String modifyUserId;
private Date modifyTime;
private Date timeStamp;
private List<InformationTypeEntity> childNodes = new ArrayList<>(); // 子菜单list
- 查出所有菜单列表
/**
* 查询资讯菜单（一次性加载）
*
* @throws CustomException
*/
@RequestMapping(value = "/findAllTypeList")
public List<InformationTypeEntity> findAllTypeList() throws CustomException {
// 加载所有菜单列表
List<InformationTypeEntity> rootList = informationTypeService.findInfoTypeByType("1", null);
List<InformationTypeEntity> list = new ArrayList<>();
for (int i = 0; i < rootList.size(); i++) {
InformationTypeEntity typeEntity = rootList.get(i);
if ("-1".equals(typeEntity.getParentId())) {
list.add(typeEntity);
}
}
for (InformationTypeEntity entity : list) {
entity.setChildNodes(getChildNodes(entity.getInformationTypeId(), rootList));
}
return list;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
/**
* 查询资讯菜单（一次性加载）
*
* @throws CustomException
*/
@RequestMapping(value = "/findAllTypeList")
public List<InformationTypeEntity> findAllTypeList() throws CustomException {
List<InformationTypeEntity> rootList = informationTypeService.findInfoTypeByType("1", null);
List<InformationTypeEntity> list = new ArrayList<>();
for (int i = 0; i < rootList.size(); i++) {
InformationTypeEntity typeEntity = rootList.get(i);
// 找出根级菜单，（约定所有根级菜单的parentId属性为-1）
if ("-1".equals(typeEntity.getParentId())) {
list.add(typeEntity);
}
}
for (InformationTypeEntity entity : list) {
entity.setChildNodes(getChildNodes(entity.getInformationTypeId(), rootList));
}
return list;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
/**
* 查询资讯菜单（一次性加载）
*
* @throws CustomException
*/
@RequestMapping(value = "/findAllTypeList")
public List<InformationTypeEntity> findAllTypeList() throws CustomException {
List<InformationTypeEntity> rootList = informationTypeService.findInfoTypeByType("1", null);
List<InformationTypeEntity> list = new ArrayList<>();
for (int i = 0; i < rootList.size(); i++) {
InformationTypeEntity typeEntity = rootList.get(i);
// 找出根级菜单，（约定所有根级菜单的parentId属性为-1）
if ("-1".equals(typeEntity.getParentId())) {
list.add(typeEntity);
}
}
// 循环根级菜单，为每个根级菜单下的子菜单list赋值。
for (InformationTypeEntity entity : list) {
entity.setChildNodes(getChildNodes(entity.getInformationTypeId(), rootList));
}
return list;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 递归解决无限层级嵌套（里面的注释我写的很清楚，英文的，大家凑合看吧。大概的思路就是除了当前子菜单后，还要考虑子菜单的子菜单，考虑用递归处理。递归结束的条件就是没有子菜单，也就是list的size为0.此种方式支持无线的嵌套）
/**
* Return the list of children node from percent menu id
*
* @param id current menu id
* @param rootList all list of menus
* @return
* @throws CustomException
*/
private List<InformationTypeEntity> getChildNodes(String id, List<InformationTypeEntity> rootList) throws CustomException {
// The list of child nodes
List<InformationTypeEntity> childList = new ArrayList<>();
// Fill the list of child'nodes which parent id equal params of id
for (InformationTypeEntity typeEntity : rootList) {
if (StringUtils.isNotBlank(typeEntity.getParentId())) {
if (id.equals(typeEntity.getParentId())) {
childList.add(typeEntity);
}
}
}
if (childList.size() == 0) {
return null;
}
// Look up it's child node and fill
for (InformationTypeEntity entity : childList) {
entity.setChildNodes(getChildNodes(entity.getInformationTypeId(), rootList));
}
return childList;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
总结
- 关于树形菜单的实现方案有很多，我只是列举出比较典型的2种方案。
- 举例的这种方案可以支持无限级嵌套
- 举例的这种只发送一次sql,可以在一定程度上调高效率，减少数据库压力
- 理解思路，上面的代码好看优化哈，以后有时间再补充上
测试结果如下
[
{
"informationTypeId": "4",
"informationTypeNum": 1,
"informationTypeCode": "001",
"informationTypeUrl": "/index",
"informationTypeName": "资讯管理",
"informationTypePicBosKey": "pic",
"informationTypeLevel": null,
"type": "1",
"model": "1",
"isEdit": null,
"parentId": "-1",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 10:17:51",
"childNodes": [
{
"informationTypeId": "1",
"informationTypeNum": 1,
"informationTypeCode": "001001",
"informationTypeUrl": "/index1",
"informationTypeName": "十九大管理",
"informationTypePicBosKey": "pic1",
"informationTypeLevel": null,
"type": "1",
"model": "1",
"isEdit": null,
"parentId": "4",
"remark": null,
"createUserId": null,
"createTime": "2018-06-01 10:15:35",
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 10:17:56",
"childNodes": [
{
"informationTypeId": "5",
"informationTypeNum": 1,
"informationTypeCode": "001001001",
"informationTypeUrl": "/index/index1",
"informationTypeName": "中国梦",
"informationTypePicBosKey": "pic",
"informationTypeLevel": null,
"type": "1",
"model": "2",
"isEdit": null,
"parentId": "1",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 10:18:53",
"childNodes": [
{
"informationTypeId": "8",
"informationTypeNum": 1,
"informationTypeCode": "001001001001",
"informationTypeUrl": "/index/index/index",
"informationTypeName": "白日梦",
"informationTypePicBosKey": "pic",
"informationTypeLevel": null,
"type": "1",
"model": "1",
"isEdit": null,
"parentId": "5",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 11:21:50",
"childNodes": [
{
"informationTypeId": "10",
"informationTypeNum": 1,
"informationTypeCode": "001001001001001",
"informationTypeUrl": "/index/index/index2",
"informationTypeName": "李白的白日梦",
"informationTypePicBosKey": "pic",
"informationTypeLevel": null,
"type": "1",
"model": "1",
"isEdit": null,
"parentId": "8",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 11:24:05",
"childNodes": [
{
"informationTypeId": "12",
"informationTypeNum": 1,
"informationTypeCode": "000013123123123123123",
"informationTypeUrl": "12341234123123",
"informationTypeName": "李白的白日梦儿子1",
"informationTypePicBosKey": "23213",
"informationTypeLevel": null,
"type": "1",
"model": "1",
"isEdit": null,
"parentId": "10",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 11:32:36",
"childNodes": [
{
"informationTypeId": "14",
"informationTypeNum": 2,
"informationTypeCode": "242424",
"informationTypeUrl": "24243234234",
"informationTypeName": "l李白的白日梦儿子1的儿子11111",
"informationTypePicBosKey": "2424",
"informationTypeLevel": null,
"type": "1",
"model": "2",
"isEdit": null,
"parentId": "12",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 11:36:28",
"childNodes": null
}
]
},
{
"informationTypeId": "13",
"informationTypeNum": 2,
"informationTypeCode": "2424234234234234",
"informationTypeUrl": "2424242424",
"informationTypeName": "李白的白日梦儿子2",
"informationTypePicBosKey": "23424",
"informationTypeLevel": null,
"type": "1",
"model": "1",
"isEdit": null,
"parentId": "10",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 11:33:07",
"childNodes": null
}
]
},
{
"informationTypeId": "11",
"informationTypeNum": 2,
"informationTypeCode": "0010001001001002",
"informationTypeUrl": "/index/index/index2",
"informationTypeName": "杜甫的白日梦",
"informationTypePicBosKey": "pic",
"informationTypeLevel": null,
"type": "1",
"model": "2",
"isEdit": null,
"parentId": "8",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 11:24:58",
"childNodes": null
}
]
},
{
"informationTypeId": "9",
"informationTypeNum": 2,
"informationTypeCode": "001001001002",
"informationTypeUrl": "/index/index/index2",
"informationTypeName": "黑夜梦",
"informationTypePicBosKey": "pic",
"informationTypeLevel": null,
"type": "1",
"model": "2",
"isEdit": null,
"parentId": "5",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 11:22:30",
"childNodes": null
}
]
},
{
"informationTypeId": "6",
"informationTypeNum": 2,
"informationTypeCode": "001001002",
"informationTypeUrl": "/index/index2",
"informationTypeName": "扶贫",
"informationTypePicBosKey": "pic",
"informationTypeLevel": null,
"type": "1",
"model": "2",
"isEdit": null,
"parentId": "1",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 10:20:23",
"childNodes": null
}
]
},
{
"informationTypeId": "2",
"informationTypeNum": 2,
"informationTypeCode": "001002",
"informationTypeUrl": "/index2",
"informationTypeName": "党代会议管理",
"informationTypePicBosKey": "pic2",
"informationTypeLevel": null,
"type": "1",
"model": "2",
"isEdit": null,
"parentId": "4",
"remark": null,
"createUserId": null,
"createTime": "2018-06-13 05:48:42",
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 10:17:54",
"childNodes": [
{
"informationTypeId": "7",
"informationTypeNum": 1,
"informationTypeCode": "001002001",
"informationTypeUrl": "/index/index",
"informationTypeName": "党会管理",
"informationTypePicBosKey": "pic111",
"informationTypeLevel": null,
"type": "1",
"model": "3",
"isEdit": null,
"parentId": "2",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 10:20:59",
"childNodes": null
}
]
},
{
"informationTypeId": "3",
"informationTypeNum": 3,
"informationTypeCode": "001003",
"informationTypeUrl": "/index3",
"informationTypeName": "两学一做",
"informationTypePicBosKey": "pic3",
"informationTypeLevel": null,
"type": "1",
"model": "1",
"isEdit": null,
"parentId": "4",
"remark": null,
"createUserId": null,
"createTime": null,
"modifyUserId": null,
"modifyTime": null,
"timeStamp": "2018-06-15 10:17:53",
"childNodes": null
}
]
}
]
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
- 235
- 236
- 237
- 238
- 239
- 240
- 241
- 242
- 243
- 244
- 245
- 246
- 247
- 248
- 249
- 250
- 251
- 252
- 253
- 254
- 255
- 256
- 257
- 258
- 259
- 260
- 261
- 262
- 263
- 264
- 265
- 266
- 267
- 268
- 269
- 270
- 271
- 272
- 273
- 274
- 275
- 276
- 277
- 278
- 279
- 280
- 281
- 282
- 283
- 284
- 285
- 286
- 287
- 288
- 289
